1. Product Introduction
1.1 Product Description

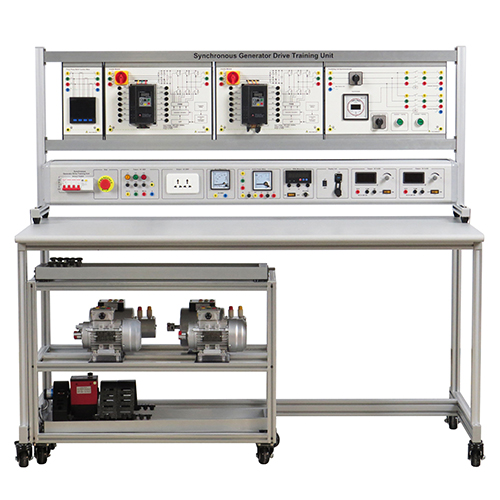

This training bench includes typical application circuit units for three-phase asynchronous motors and three-phase synchronous generators. Through related experiences, you can become familiar with the electrical characteristics of controlling a three-phase salient-pole generator, master its control principles and methods, and train students' coping abilities.
1.2 Product Features
(1) The training bench adopts an aluminum profile column frame structure. The measuring instruments and training power supply are integrated into one unit. Each unit is flexible, easy to operate, and not easily damaged.
(2) The motor is equipped with a dedicated base, which can be directly connected to a DC motor to form a generator load group. The wiring and working status can be monitored intuitively to complete the training content of various courses.
(3) Related units can be flexibly added or removed according to the experimental subjects to meet the needs of different users.
(4) The training bench has a good safety protection system.
2. Technical Specifications
2.1 Basic Technical Parameters
|
Power Supply |
Three-phase five-wire system, 380V±10% 50Hz |
|
Operating Environment |
Ambient Temperature -10℃ ～ +40℃ |
|
Total Capacity |
<1.5KVA |
2.2 Equipment Dimension
|
Dimension |
1600mm × 600mm × 800mm |
|
Weight |
<380kg |
|
No.
|
Name
|
Quantity
|
|
1
|
Template
|
4
|
|
2
|
Power Supply Box
|
1
|
|
3
|
Desktop
|
1
|
|
4
|
Cart (Frame)
|
1
|
|
5
|
Motor Set
|
4
|
|
6
|
Motor Control Components
|
2
|
|
No.
|
Name
|
Quantity
|
|
1
|
Three-phase Multifunction Meter Module
|
1
|
|
2
|
Frequency Converter Module
|
2
|
|
3
|
Synchronization Module
|
1
|
|
No.
|
Name
|
Quantity
|
|
1
|
Circuit Breaker
|
1
|
|
2
|
Emergency Stop Switch
|
1
|
|
3
|
Three-phase five-wire power supply
|
1
|
|
4
|
Power socket
|
3
|
|
5
|
Voltmeter
|
1
|
|
6
|
Power meter
|
1
|
|
7
|
Electronic tachometer
|
1
|
|
8
|
Torque-speed-mechanical power display meter
|
1
|
|
9
|
Excitation power supply
|
2
|
|
No.
|
Name
|
Function Description
|
Quantity
|
|
1
|
Phase sequencer
|
Handheld phase sequencer
|
1
|
|
2
|
Fuse
|
5A 5*20
|
10
|
|
3
|
Fuse
|
6A 5*20
|
10
|
|
4
|
Fuse
|
10A 5*20
|
10
|
|
5
|
4mm electrical safety connection cable
|
1m Double-ended Red
|
10
|
|
6
|
4mm electrical safety connection cable
|
1m Double-ended Green
|
10
|
|
7
|
4mm electrical safety connection cable
|
1m Double-ended Yellow
|
10
|
|
8
|
4mm electrical safety connection cable
|
1m Double-ended Black
|
10
|
|
9
|
4mm electrical safety connection cable
|
1m Double-ended Blue
|
5
|
|
10
|
4mm electrical safety connection cable
|
1m Double-ended Two-color
|
5
|
|
11
|
USB connection cable
|
USB at both ends, blue, 1.5 meters,
|
1
|
|
12.
|
Three-core British power cord
|
3*0.75 square millimeters, 1.5m, Hong Kong plug Tail with triangular design, with fuse plug,
|
2
|
|
13.
|
USB flash drive
|
software/data
|
1
|
|
14
|
Torque transmitter data cable
|
power supply and data transmission
|
1
|
